Our Fuel Cell Compressor Range
High-Speed, Oil-Free Centrifugal Compressors for Clean Energy Applications
Neo Air Systems’ fuel cell compressors are engineered for precision, reliability, and zero oil contamination. Designed specifically for hydrogen and clean energy systems, these compact, high-speed centrifugal units deliver the controlled airflow that modern fuel cell stacks demand — without the risk of oil contamination that can permanently damage membrane electrode assemblies (MEAs).
Our compressors operate on air bearings, eliminating the need for lubrication entirely. Combined with high-speed brushless DC motors and liquid cooling, they offer exceptional power density in a compact, lightweight package — ideal for automotive, stationary power, and marine fuel cell applications where space and weight are at a premium.
From development-stage prototypes to production volumes of up to 50,000 units per year, Neo Air Systems can support your programme at every stage. Our engineering team works closely with customers to match compressor specification to stack operating conditions — flow rate, pressure ratio, inlet temperature, and control interface.

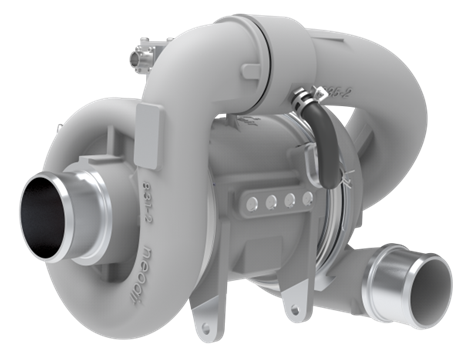

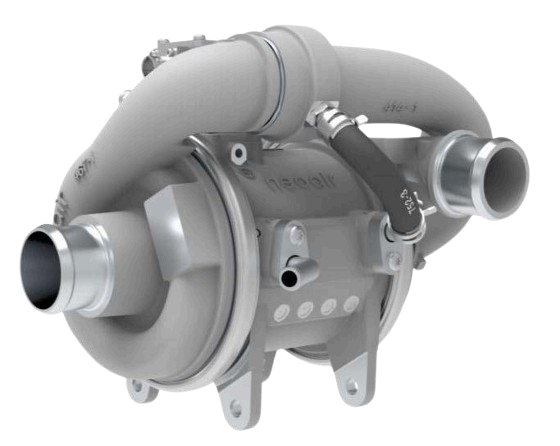

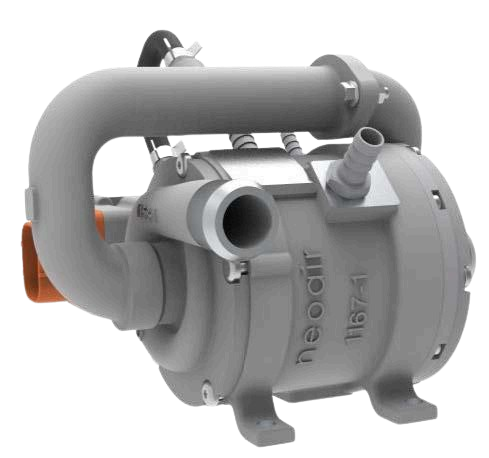

CC Series - Two Stage Compressors
Two-Stage Oil-Free Air Compressor
Rated Power: 2.3 kW
Peak Power: 2.63 kW
Voltage: 40–63 VDC
Design Point: PR 2.0 @20 g/s
Speed Range: 50–170 kRPM
Mass: 3 kg
- Oil-free
- Compact footprint
- Ideal for small-scale or mobile systems
- Low Voltage applications
Two-Stage Oil-Free Air Compressor
Rated Power: 3.8 kW
Peak Power: 4.2 kW
Voltage: 60–100 VDC
Design Point: PR 2.2 @30 g/s
Speed Range: 50–200 kRPM
Mass: 3 kg
- Oil-free
- Compact footprint
- Ideal for small-scale or mobile systems
- Low Voltage applications
Two-Stage Oil-Free Air Compressor
Rated Power: 22 kW
Peak Power: 25 kW
Voltage: 450–750 VDC
Design Point: PR 3.0 @150 g/s
Speed Range: 30–115 kRPM
Mass: 12 kg
- Oil-free, Two-stage centrifugal compressor
- Comes with a controller included
- Features liquid-cooled controller and compressor
Two-Stage Oil-Free Air Compressor
Rated Power: 40 kW
Peak Power: 45 kW
Voltage: 450–750 VDC
Design Point: PR 2.5@340 g/s
Speed Range: 30–90 kRPM
Mass: 18 kg
- Oil-free, Two-stage centrifugal compressor
- Comes with a controller included
- Features liquid-cooled controller and compressor
- Compact
C Series - Single Stage Compressors
Single-Stage Compressor
Rated Power: 22 kW
Peak Power: 25 kW
Voltage: 450–750 VDC
Design Point: PR 2.5 @ 180 g/s
Speed Range: 30–110 kRPM
Mass: 11 kg
- Oil-free
- Compact footprint
- Efficient
- Supplied with Inverter
Single-Stage Compressor
Rated Power: 35 kW
Peak Power: 40 kW
Voltage: 450-750 VDC
Design Point: PR 2..7 @260 g/s
Speed Range: 30–100 kRPM
Mass: 16 kg
- Oil-free, single-stage centrifugal compressor
- Comes with a controller included
- Features liquid-cooled controller and compressor

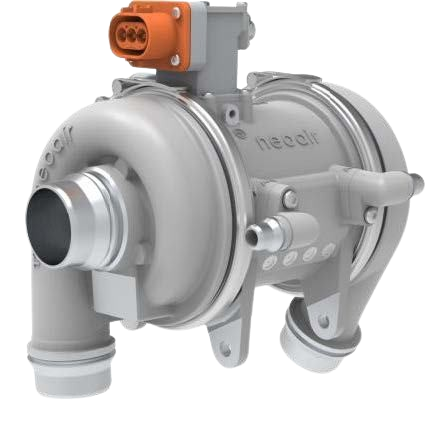

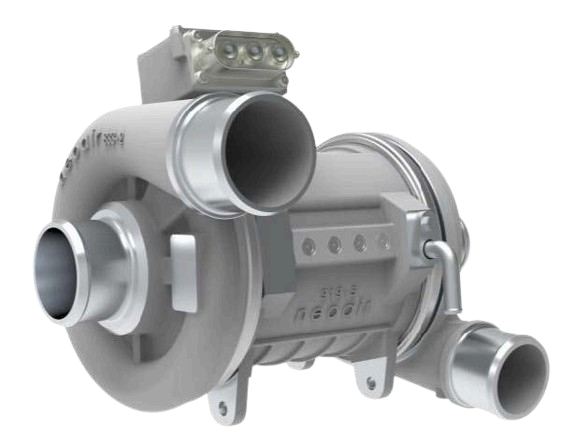

CEF Series - Compressors with Expanders
Compressor / Fixed vaned Expander
Rated Power: 22 kW
Peak Power: 25 kW
Voltage: 450–750 VDC
Design Point: PR 3.0 @ 210 g/s
Speed Range: 30–120 kRPM
Mass: 12 kg
- Oil-free
- Compact footprint
- Ideal for small-scale or mobile systems
- High efficiency
Compressor / Fixed vaned Expander
Rated Power: 35 kW
Peak Power: 40 kW
Voltage: 450–750 VDC
Design Point: PR 3.0 @ 290 g/s
Speed Range: 30–110 kRPM
Mass: 17 kg
- Oil-free
- Compact footprint
- Ideal for mobile systems
- improve efficiency of your system

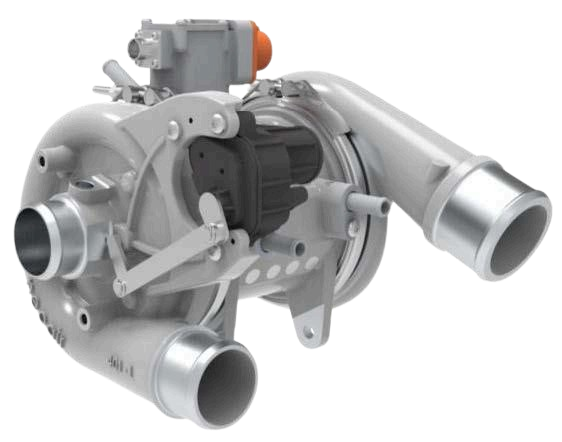

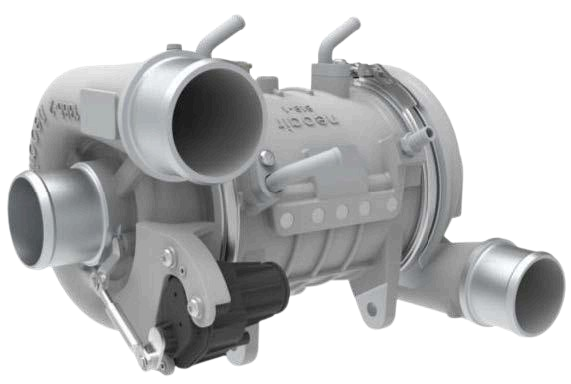

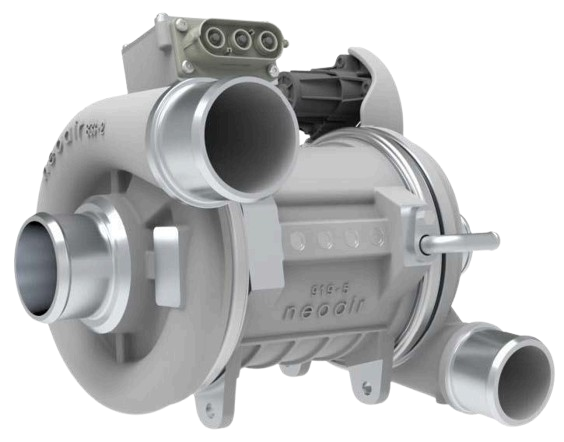

CEV Series - Compressors with Variable Vane Expanders
Compressor/Expander
Rated Power: 20 kW
Peak Power: 25 kW
Voltage: 450–750 VDC
Design Point: PR 3.0 @ 210 g/s
Speed Range: 30–120 kRPM
Mass: 12.8 kg
- Oil-free
- Compact footprint
- Ideal for mobile systems
Compressor/Expander
Rated Power: 35 kW
Peak Power: 40 kW
Voltage: 450–750 VDC
Design Point: PR 3.0 @ 290 g/s
Speed Range: 30–110 kRPM
Mass: 18 kg
- Oil-free
- Compact footprint
- Variable vaned turbine stage
- Inverter included
Compressor/Expander
Rated Power: 50 kW
Peak Power: 60 kW
Voltage: 450–750 VDC
Design Point: PR 4.0 @ 620 g/s
Speed Range: 30–105 kRPM
Mass: 25.5 kg
- Oil-free
- Compact footprint
- Ideal for small-scale or mobile systems
- Plug-and-play integration
Why choose Neo Air compressors?
Oil-Free Centrifugal Technology
Ensures clean air output, ideal for sensitive industrial environments.
Liquid-Cooled System
Maintains stable performance and temperature control.
High-Speed Operation
Delivers efficient airflow with smooth, low-vibration performance at high speeds
Lightweight & Compact Design
Fits easily into constrained system layouts without adding unnecessary bulk.
Integrated Drive Electronics
Simplifies installation and reduces system complexity for faster deployment.
Ideal for Hydrogen Fuel Cell Applications
Provides reliable, controlled air delivery essential for optimal fuel cell efficiency.
