Neo Air’s fuel cell compressors are engineered for precision, reliability, and zero oil contamination. Designed for hydrogen and clean energy systems, these compact units deliver high performance with minimal maintenance.

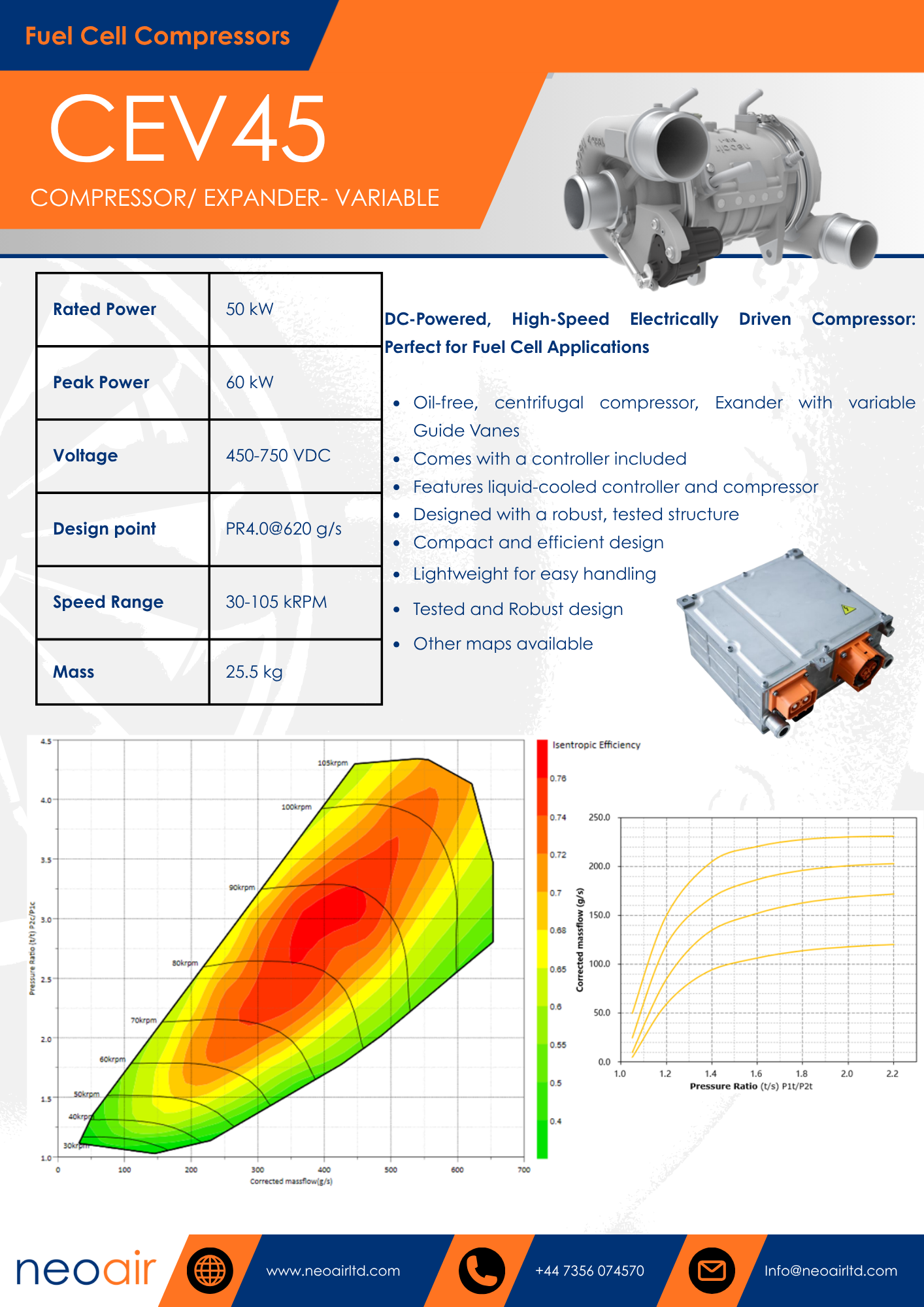

Our CEV45 is designed around 620g/s at 4.0PR with a voltage input of between 450-750 VDC. Requires an exhaust flow accross turbine.
Allows for further improved effciency by adjustable vanes on turbine stage
Supplied with Inverter.
|
Rated Power |
50 kW |
|
Peak Power |
60 kW |
|
Voltage |
450-750 VDC |
|

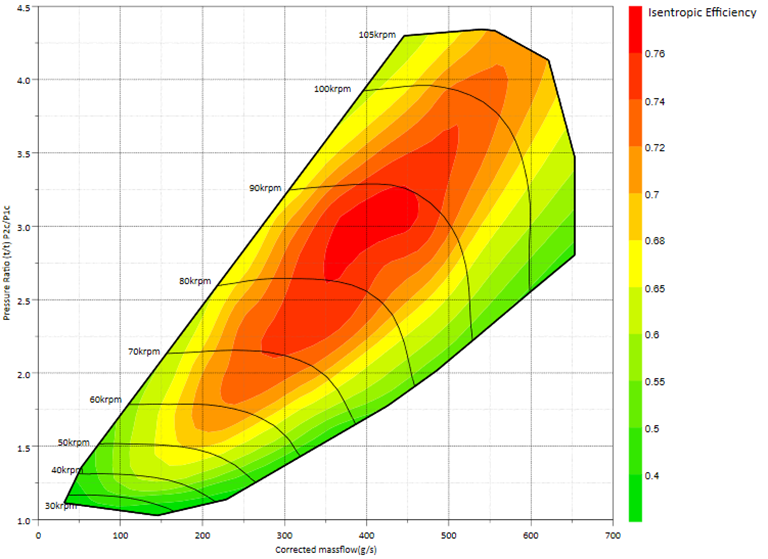

Design point |
PR4.0@620 g/s |
|
Speed Range |
30-105 kRPM |
|
Compressor Mass |
25.5 kg |
Speak to one of our team for further assistance
